HYDROKALVABIO STP

Hydrokalvabio Perusahaan IPAL dan Konsultan IPAL, Kontraktor STP, WWTP terpercaya di Jakarta, Bandung, Surabaya, Bali. Berpengalaman dalam Pengelolaan dan Instalasi Pengolahan Air Limbah Cair Domestik, Industri, Rumah Sakit, Pabrik, Hotel dan Restoran. Menggunakan Mesin dan Alat Pengolah Limbah Cair Bio Technology, Biofilter Aerob & Anaerob serta IPAL Komunal.

Introduction

HYDRO KALVABIO, Advanced STP Packages; Sistem STP yang sangat produktif (efektif dan efisien) untuk mengatasi permasalahan pengolahan air limbah domestik.

HYDRO KALVABIO, menawarkan keuntungan :

  • Cepat dalam pengadaan dan pemasangan (package system)
  • Mudah untuk operasional dan perawatan (Biofilter-MBBR-Biobox)
  • Handal dalam performa (kualitas hasil olahan) (Biofilter-MBBR-Biobox)
  • Ekonomis, Sedikit sludge dan bebas bau (MBG, Biofilter-MBBR)
  • Capex & Opex, Footprint - visible

Advance STP Packages

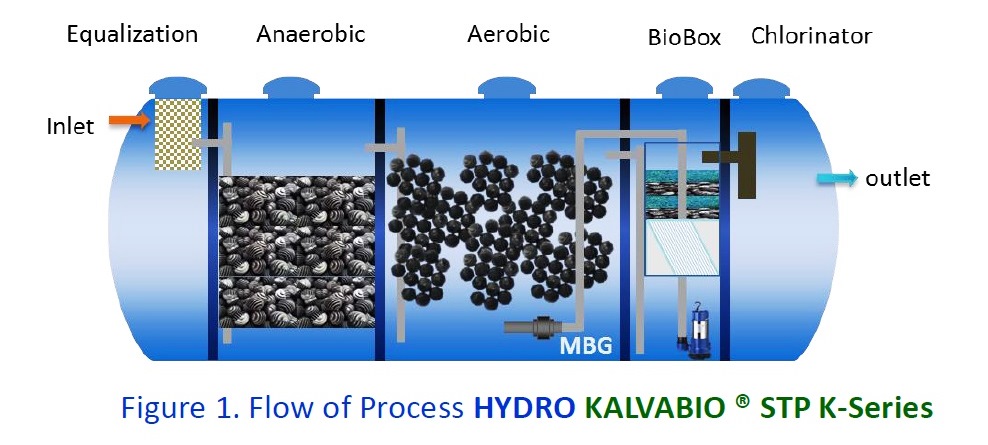

Flow of Process
HYDRO STP Process
MBG Technology
BioBox Technology
HYDRO KALVABIO ® STP Series consist of;
  1. Equalization - Screen
  2. Anaerobic - Bio Filter
  3. Aerobic – MBBR & MBG Aeration
  4. BioBox – Plate Settler, BioMat, BioBall etc.
  5. Chlorinator
  6. Applied KALVABIO® Series (Special formulated Bacteria & Nutrient)
Domestic waste water was collected at Sump Pit and pumped to HYDRO® STP K-Series. Waste water will be treated as follows;
  1. Equalization : Waste water will be homogeny and Screening big or coarse contaminant
  2. Anaerobic (BioFilter) : Reducing COD/BOD with fixed bacteria & no O2 Supply
  3. Aerobic (MBBR) : Reducing COD/BOD with MBBR System – MBG Aeration Technology
  4. BioBox (Complete Finishing Stage) : Sedimentation, Bio-Filtration and De-nutrient
  5. Chlorinator : To ensure total E-coliform meet standard

MBG Technology :

  • MBG is Micro-Bubble Generator
  • MBG produces micro bubble in water (adjustable bubble size)
  • It requires a steady supply of water under pressure and plus a supply of air and no moving part of MBG (long life time)

Micro Bubble provides two important advantages :

  • More Surface Area : Micro-bubbles of any gas provide a larger surface area in any liquid.
  • More Time : Micro-bubbles of any gas rise much more slowly in any liquid.

Finally MBG provides very good in;

  • Standard Oxygen Transfer Efficiency (SOTE, %)
  • Energy Efficient due to using RAS Pump
BIOBOX Technology
  • RAS Pump
  • Plate Settler
  • BioMat-BioBall
BioBox provides a complete finishing stage;
  • RAS Pump; return activated sludge slough off from biomedia
  • Plate Settler, give better sedimentation
  • BioMat – BioBall; bio-filtration and de-nutrient
Finally BioBox ensures a good quality of effluent

Why, HYDROKALVABIO STP K-Series ?

1. LESS Sludge

  • The system using combination of Anaerobic biofilter, MBBR and BioBox (sludge 5-10% of BOD)

2. NO Odor/Smell

  • Applied special formulated bacteria and nutrient (KALVABIO® Series), very effective in degrade COD/BOD, no odor and de-nutrient

3. SAVE Power (MBG Technology)

  • Using RAS Pump & Micro Bubble Generator as Aerator

4. LOW Footprint (high Volumetric Loading Rate)

5. VISIBLE Capex and Opex

  • Cheap in price

  • Fast in delivery & installation

  • Easy in handling (operation, monitoring and maintenance)

  • Good and Stable in performance

HYDROKALVABIO STP K-Series

Product Detail
Flow of Process
Result
HYDRO KALVABIO ® STP Series consist of;
  1. Equalization - Screen
  2. Anaerobic - Bio Filter
  3. Aerobic – MBBR & MBG Aeration
  4. BioBox – Plate Settler, BioMat, BioBall etc.
  5. Chlorinator
  6. Applied KALVABIO® Series (Special formulated Bacteria & Nutrient)
BIOBOX Technology
  • RAS Pump
  • Plate Settler
  • BioMat-BioBall
BioBox provides a complete finishing stage;
  • RAS Pump; return activated sludge slough off from biomedia
  • Plate Settler, give better sedimentation
  • BioMat – BioBall; bio-filtration and de-nutrient
Finally BioBox ensures a good quality of effluent
